Applications of Machine Learning in the Pharmaceutical Industry
In the pharmaceutical and clinical diagnostics industry, machine learning is becoming a key tool for accelerating innovation, reducing costs, and improving accuracy at every stage of the product development cycle.
This document presents three practical applications of machine learning:
- QSAR modeling, which allows for anticipating physicochemical properties of compounds in early development stages.

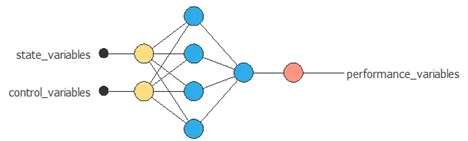

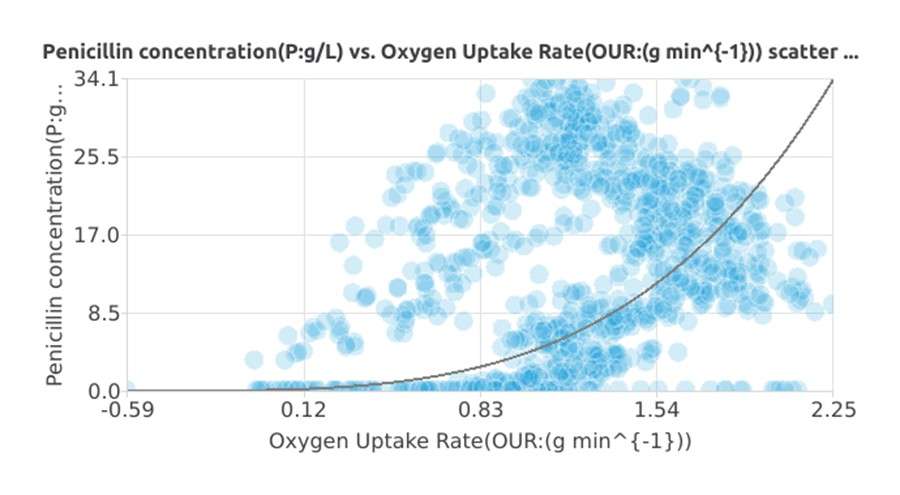

- Biopharmaceutical industrial process optimization, where yields are predicted, and deviations are controlled using production sensor data.

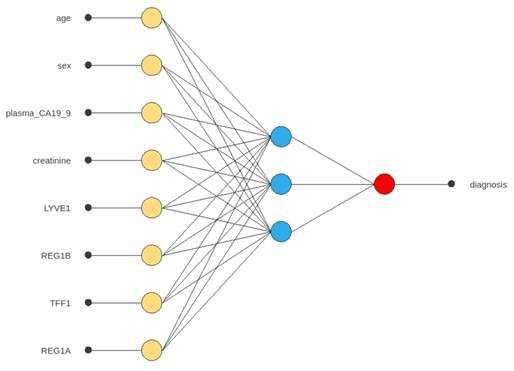

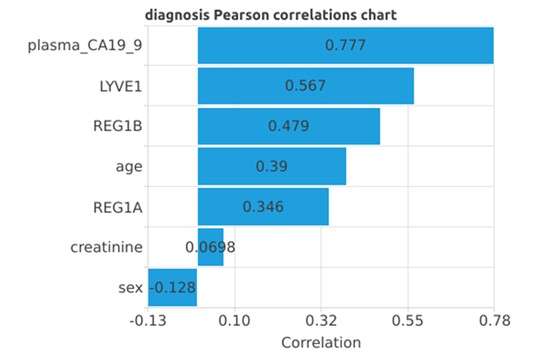

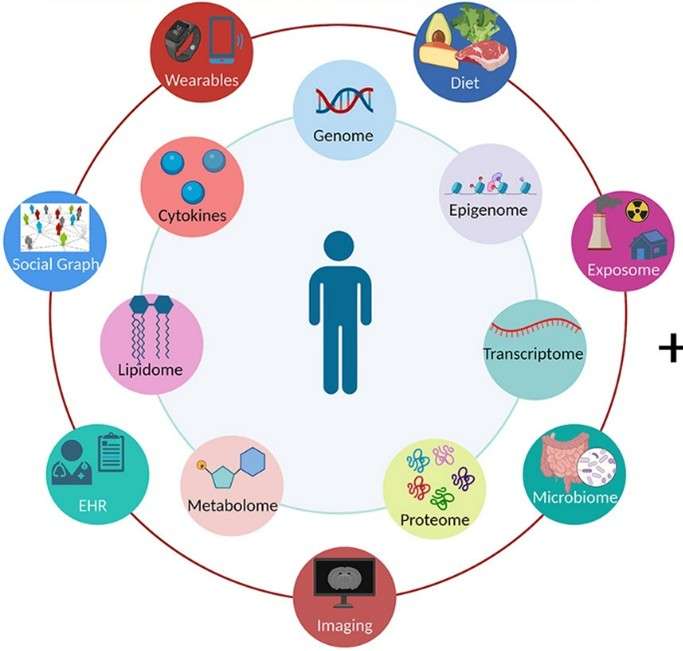

- Biomarker discovery, aimed at improving diagnostic classification and designing more personalized clinical trials.
Each of these applications is illustrated with a practical case study based on real datasets and implemented using the Neural Designer platform, demonstrating the applicability of machine learning in complex biomedical environments.
QSAR Modeling
What is QSAR modeling?

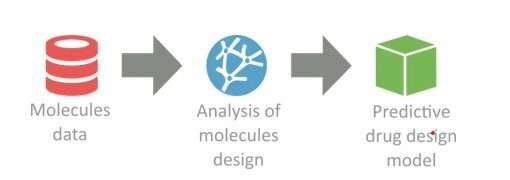

QSAR (Quantitative Structure-Activity Relationship) is a methodology that allows for predicting the biological or toxicological activity of a chemical compound based on its molecular structure.
This technique is based on the premise that molecules with similar structures will have similar effects in biological systems.
How does it work?
- Molecular descriptors are calculated (e.g., molecular weight, polarity, number of bonds, specific substructures).
- Machine learning models are built to relate these descriptors to a target property: toxicity, affinity, solubility, etc.
- The model can then be used to predict the behavior of new compounds without the need for direct experimentation.
Relevance for the Pharmaceutical Industry
In the drug development process, QSAR modeling is useful for:
- Identifying promising candidates from large chemical libraries.
- Reducing animal experimentation, especially in toxicity testing.
- Accelerating development in preclinical phases, lowering costs.
- Increasing safety by anticipating adverse reactions.
For companies specializing in plasma-derived therapies and clinical diagnostics, these models allow for rapid and accurate evaluation of:
- The toxicity of new excipients or adjuvants.
- Molecular interactions with plasma proteins.
- The environmental impact of residual compounds.
Case Study: Oral Toxicity Prediction
A representative example of a QSAR application is the prediction of acute oral toxicity of chemical compounds.
Dataset Used
- Name: QSAR Oral Toxicity Dataset
- Source: UCI Repository
- Data: 8,982 compounds, 1,024 binary molecular descriptors generated with PaDEL-Descriptor.
- Target variable: Binary classification: toxic (1) or non-toxic (0).
Workflow with Neural Designer
- CSV data import.
- Input/output definition.
- Training, validation, and testing.
- Interpretation: variable importance ranking, sensitivity, confusion matrix.
Results
- Approximately 85% accuracy.
- Detection of toxic structural patterns (e.g., aromatic groups, halogens, amines).
- Explainability: which molecular descriptors most influence toxicity.
Impact and Benefits
- Reduced costs and time in selecting safe compounds.
- Support for regulatory decisions, including justification to agencies like EMA or FDA.
- Compliance with ethical principles in experimentation.
- Improved molecular design, eliminating patterns associated with toxicity.
Conclusion
QSAR modeling, enhanced by tools like Neural Designer, represents an effective solution for addressing toxicity and chemical safety challenges in the pharmaceutical industry. This approach can be integrated as part of an innovation pipeline, driving informed R&D decisions, ensuring quality, and minimizing risks from early development stages.
